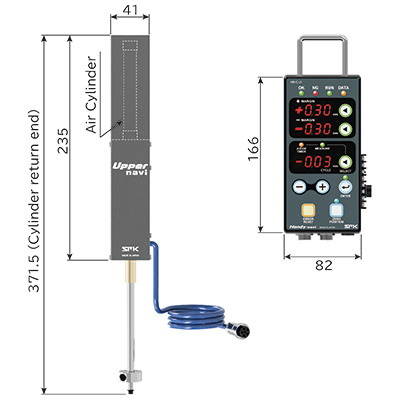

HEIGHT DETECTION SYSTEM

Upper-navi

PRODUCTS | Upper-navi

Height difference detection system New addition to navi series

Upper-navi can detect whether nut/bolt is set or not, nut height and unsuitable workpiece thickness.

Features


・Fine adjustment of the jig is not necessary.
・Easy to set a reference point.
・Detection accuracy is 0.01mm.
・Easy mounting attachment.
・Easy to install, attaching left-right adjustable unit.

Examples of Incorrect Nut Setting

Overlapped nuts
No workpiece
Unsuitable workpiece thickness
Overlapped workpieces
No nut
Overturned nut
Unsuitable nut thickness
Slanted nut
Loosened electrode
Crushed nut feet

Examples of Incorrect Bolt Setting

No bolt
No workpiece
Unsuitable workpiece thickness
Overlapped workpieces

Examples of Incorrect Spot Setting

No workpiece
Overlapped workpieces
Unsuitable workpiece thickness

Undetectable

*1 Detectable if missing part prevention cap tip is used.

*1 Misaligned nut
*1 Inverted nut
Misaligned workpiece

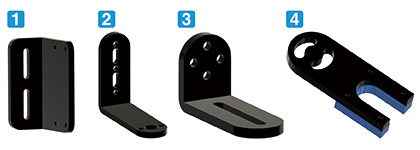

Attachments


1.Fixed bracket
2.Movable bracket
3.Intermediate bracket
4.Jig plate

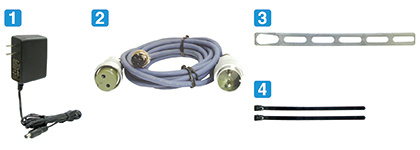

Attachments


1.AC adapter
2.Junction cable for manual operation
3.Controller mounting plate
4.Cable Tie

Feel free to contact us
