Spot Welding Machine Deflection Preventing Stand
~TAWAMINAX~

PRODUCTS | ~TAWAMINAX~

At the time of pressurization, to prevent deflection of horn, stable weld quality!

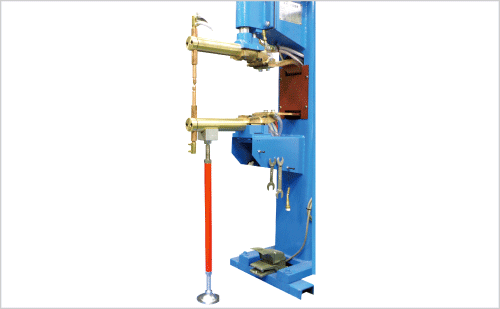

Example of spot welding

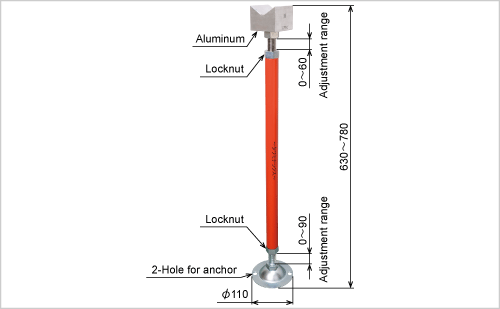

Specification

- Height from floor to bottom of horn: approx.650mm~750mm
- Length adjustment: up 60mm down 90mm total 150mm
- Maximum withstand load: 800Kg
- Weight: 3Kg


During use, a Tawaminax and a spot welding machine might move due to vibration by pressurization.
Just in case, we recommend to fix it with an anchor bolt.
