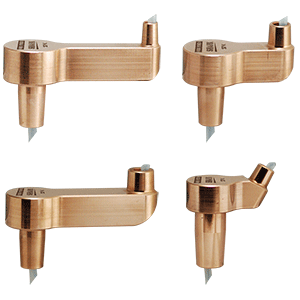

Mini Power Shank

language

Overview

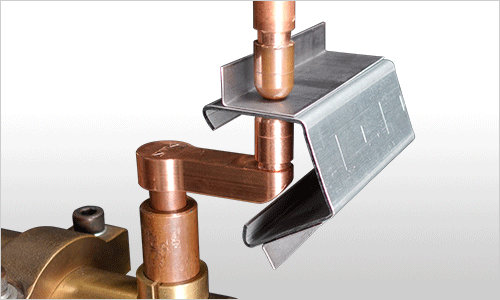

Mini Power Shank is a shank designed for welding deep workpieces and extremely narrow workpieces.
Electrode tip is replacable, please use tip that meets your welding conditions.




- Registered design

Features

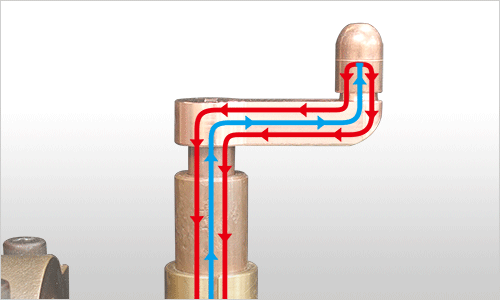

Completely cools to the tip top

Cooling water reaches to the electrode tip end, so it is excellent for cooling effect and improves welding quality.

Slim shape, avoid interference

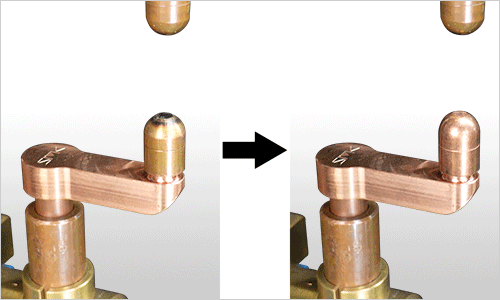

Tip replacable type

The running cost is lower and more economical than the integrated electrode.

By using taper adapter, it can be used for more various shapes of workpieces.

※Limited to mini power shanks for φ16 cap tips.

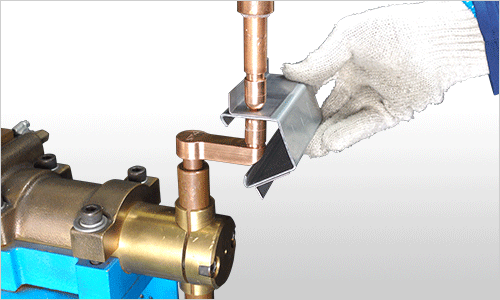

Examples of welding with the Mini Power Shank

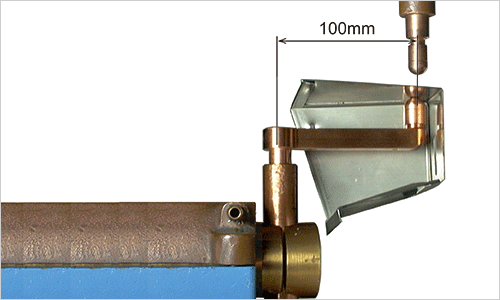

Shank with 100 mm offset for welding a deep workpiece

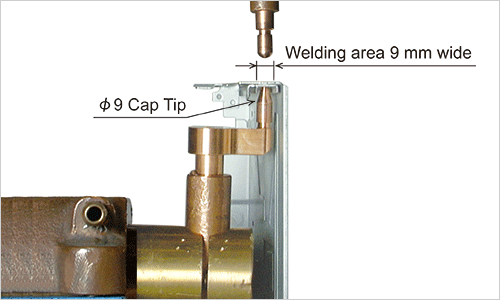

φ9 Cap Tip for welding a very narrow workpiece

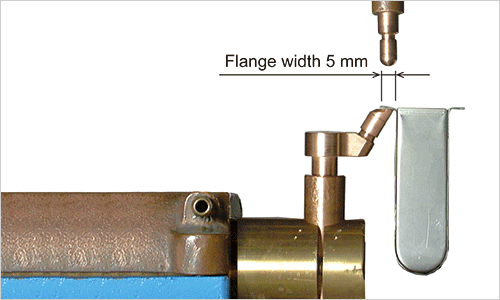

30゜Shank plus Cap Tip for welding a very narrow flange

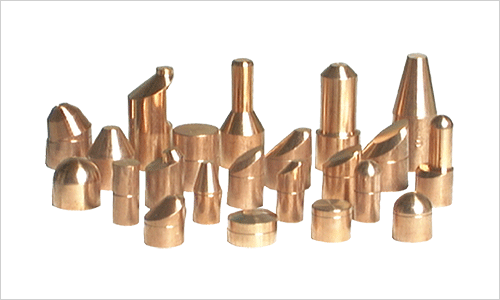

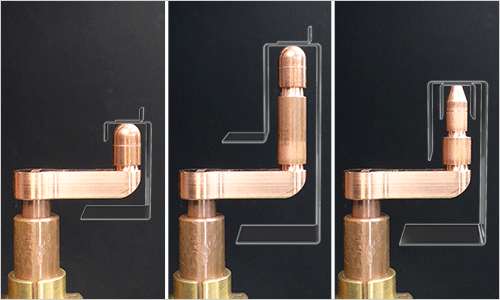

Examples of replaceable Cap Tips (Special Cap Tips are made to order)

Suggested Maximum pressure

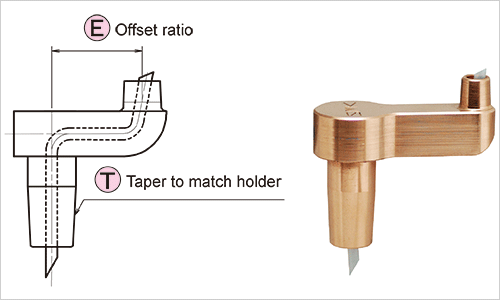

In case of φ9 Cap Tip (90°type)with taper to match holder φ16 T=1/10

E Offset ratio 20 30 40 50 60 70 80 90 100
T Max. pressure in case of φ16 (kN) 1.5 1.3 1.3 1.3 1.0 0.8 0.8 0.5 0.5

In case of φ16 Cap Tip (90°type) with taper to match holder φ16 T=1/10

E Offset ratio 20 30 40 50 60 70 80 90 100
T Max. pressure in case of φ16 (kN) 3.0 2.5 2.5 2.5 2.0 1.5 1.5 1.0 1.0

In case of φ16 Cap Tip (30°type) with taper to match holder φ16 T=1/10

E Offset ratio 25 30 40 50 60 70 80 90 100
T Max. pressure in case of φ16 (kN) 3.0 2.5 2.5 2.5 2.0 1.5 1.5 1.0 1.0


T The above max. pressure for φ16 should be used only as a guide.
T In the case of φ12 Cap Tip, the max. pressure should be approx. half that of φ16.
 Durability under extreme conditions is not guaranteed.

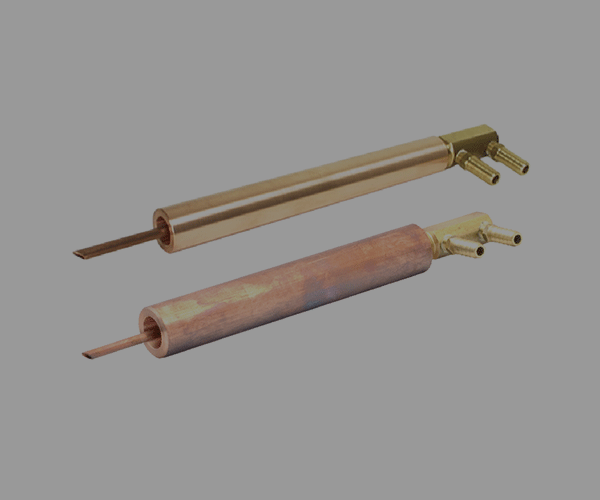

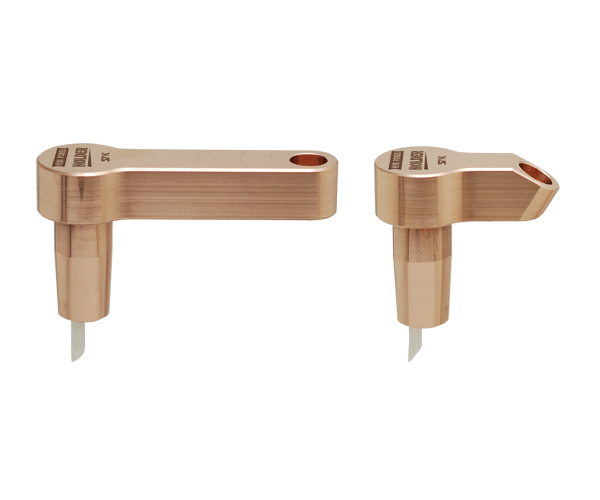

Related products
