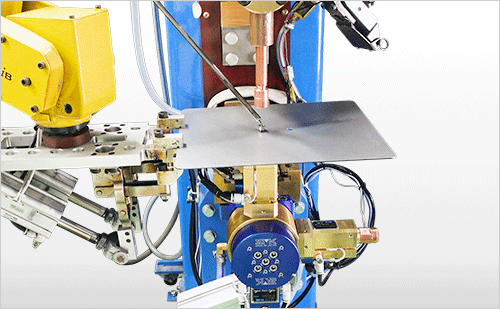

Robo-navi-Smart detects with a high accuracy whether or not the nut and the workpiece are set correctly right before welding.
It prevents manufacturing defectively welded products.
It is a poor weld detection system developed for robots and automated machinery in nut welding.
Suitable for nut size: M5・M6・M8・M10・M12・7/16
- Pending registration for a trademark -Registered design - Patent pending
Features
Smart and compact

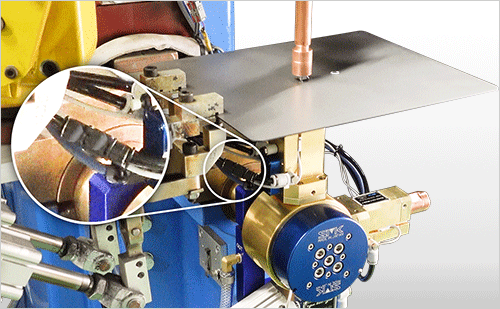

The sensor unit has an air cylinder structure inside. Interference with the workpiece and the jig is minimized.

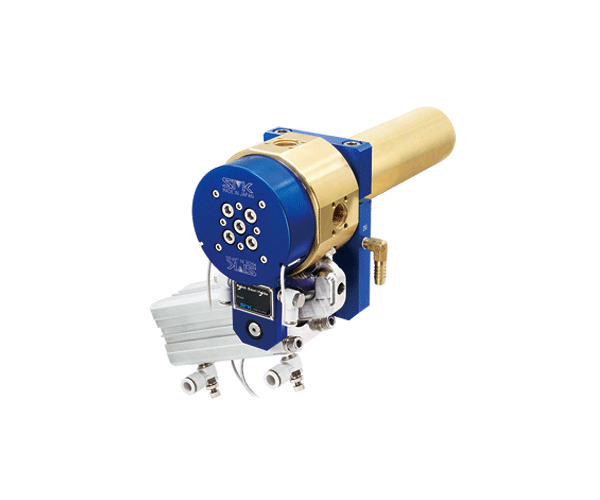

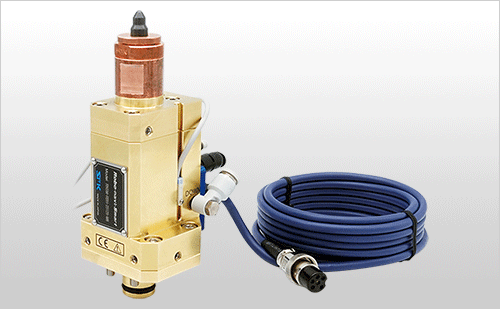

Robot-Benri Holder type

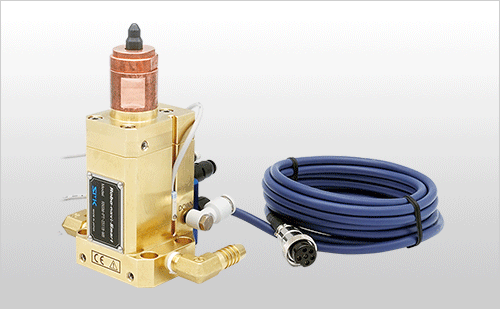

Platen type

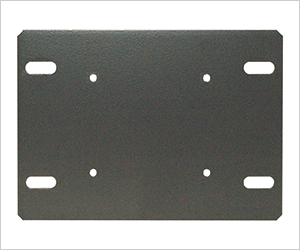

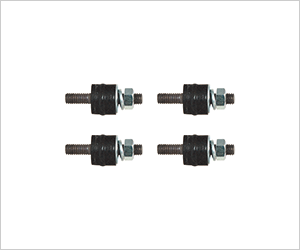

Robo-navi Smart sensor unit
Equipped as standard with a quick exhaust valve. Improve durability of the air cylinder.
Holder shows excellent cooling effect.

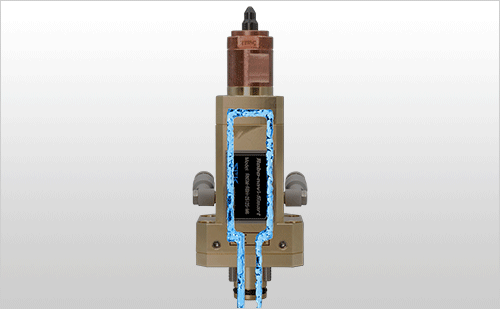

Inner water-cooling system directly cools inside the holder. It reduces wear and tear from the heat from electrodes and spatter adhesion.

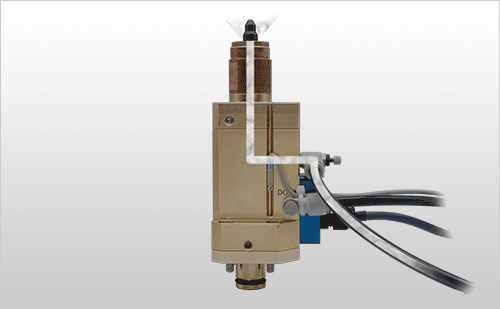

Air blow system
Air blow system reduces spatter adhesion to nuts, guide pin, and inside the unit Air-cooling effect reduces the heat of electrodes.

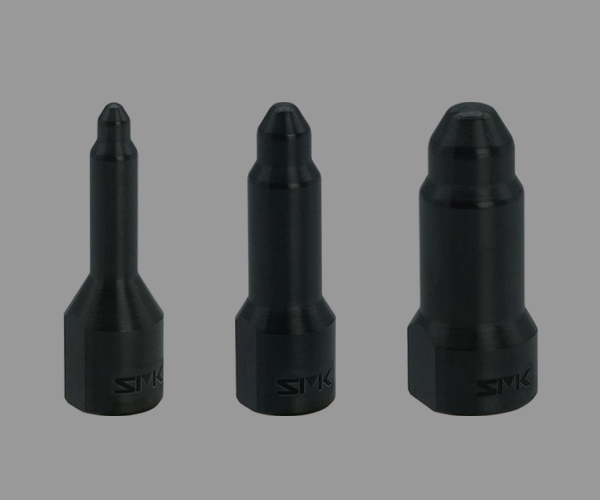

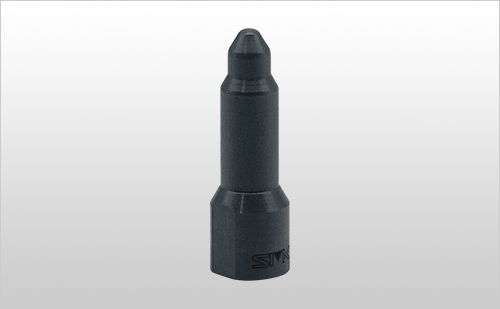

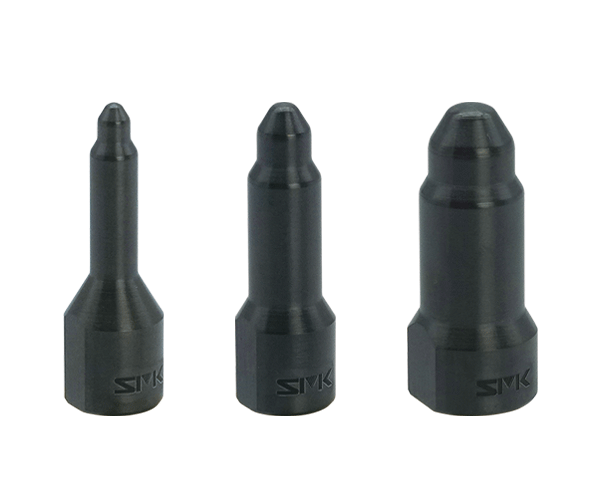

Ceramics guide pin specification
Ceramics guide pin has high hardness and long service life. Because there is no electrocorrosion, nor abrasion.
Also there is no adhesion of spatter and jamming of nut.
The use of silicon nitride guide pins stabilizes navi measurements.
*Please use the dedicated guide pin with screw.

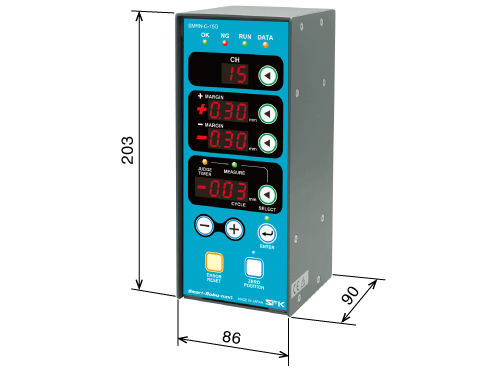

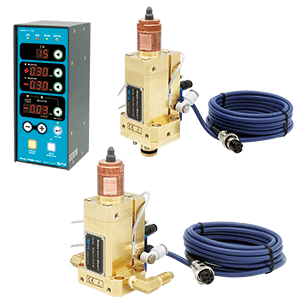

Robo-navi Smart Controller
15 conditions in standard specification, and up to 31 conditions (optional) can be registered.
OK output and NG output from this unit to external equipment is possible.
