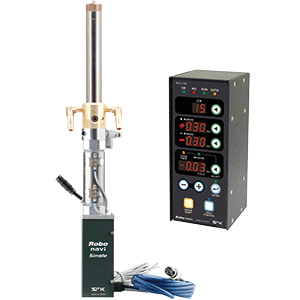

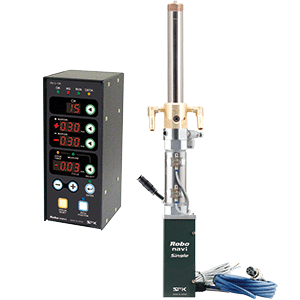

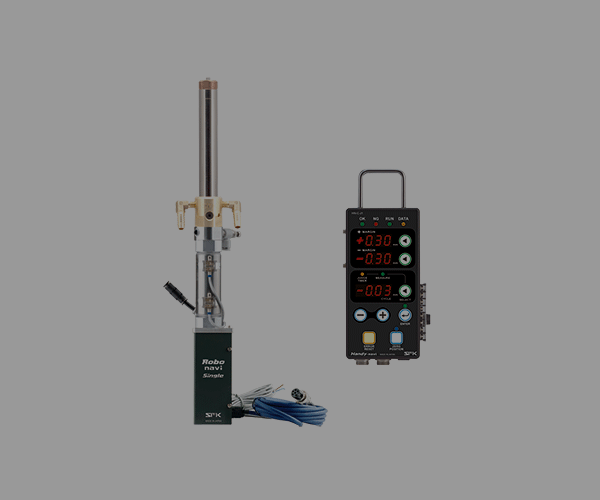

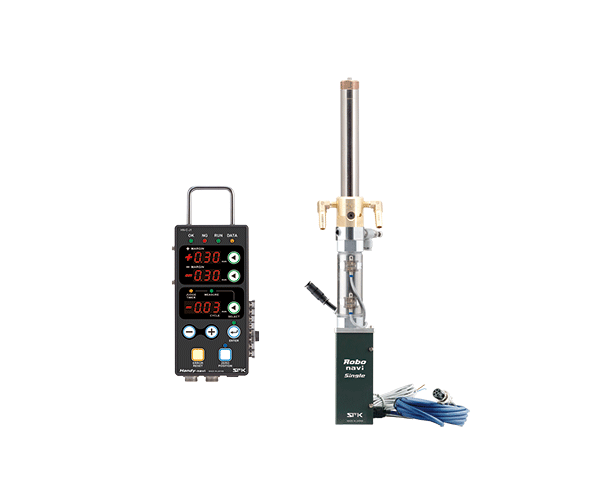

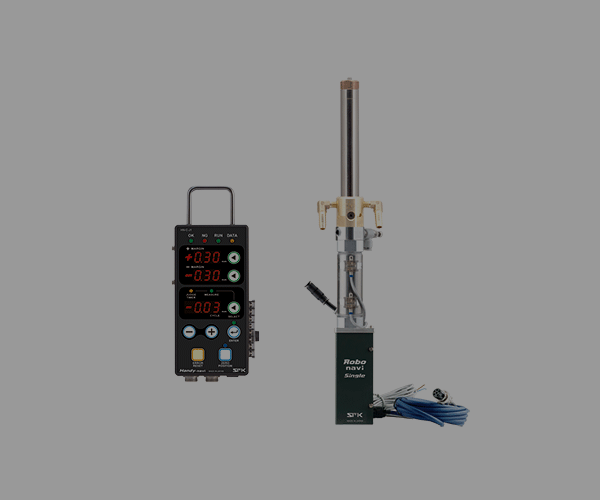

Overview
Robo-navi-Bolt detects with a high accuracy the difference in length of the neck lower part and shape of the tip of the bolt right before welding. Also, it detects whether or not the workpiece is set correctly in the same way.
It prevents manufacturing defectively welded products.
It is a poor weld detection system developed for automated line using bolt feeder.
- SMK has acquired the intellectual property rights both inside and outside Japan.

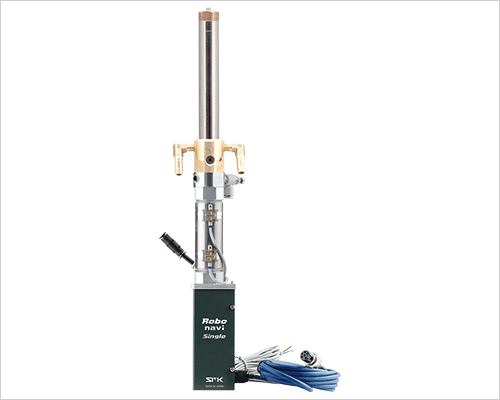

Robo-navi-Bolt Slide Unit
Positioning is much easier
The replacement work can be done easily without time-consuming adjustment and centering work that occurs when replacing each part and electrode.

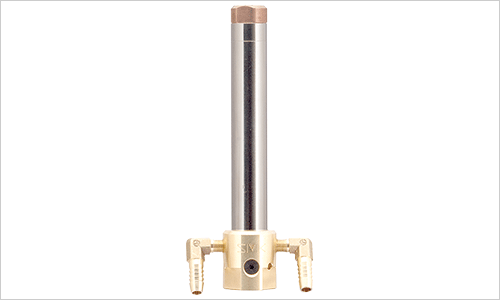

Holder has excellent cooling effect! Six sizes available.
- Suitable for bolts with a length of 45 mm or less below the head.
Internal water-cooling system that directly cools the inside of the holder reduce abrasion and spatter adhesion caused by heat on the electrode part.
Slim and compact body without water jacket or intermediate adapter allows minimum interference with the workpieces.
We have 6 standard sizes for inner water-cooling holder.
Please contact us for other sizes.
| Holder outer dia. | Φ25 | Φ32 |
| Suitable for bolt | M5・M6・M8 | M10 |
| Holder lenghth | 140㎜・190㎜・240㎜ | 140㎜・190㎜・240㎜ |

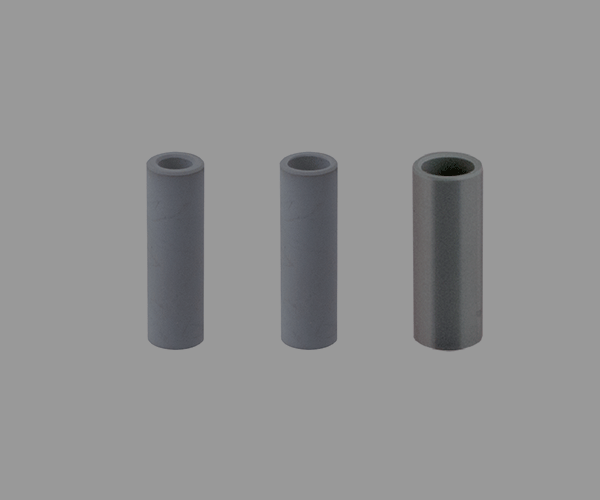

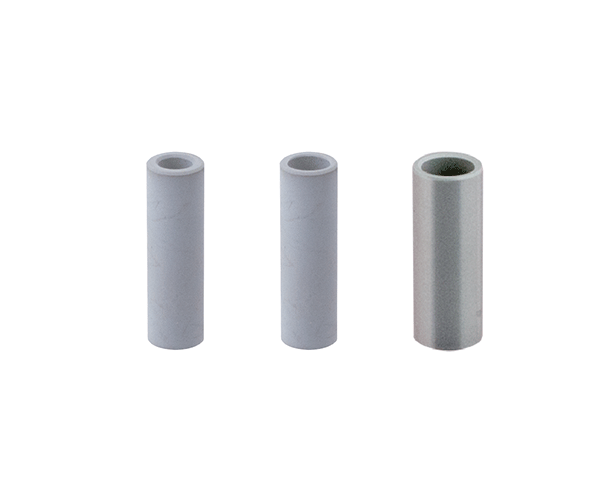

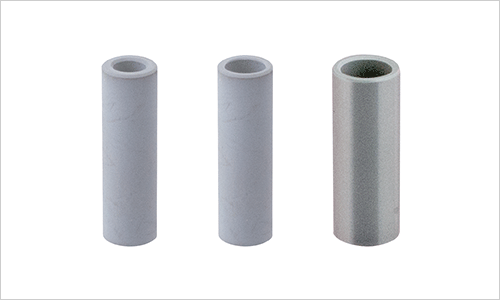

Ceramics guide pipe specification
Ceramics guide pipe has high hardness and long service life. Because there is no electrocorrosion, nor abrasion. Also there is no adhesion of spatter and jamming of bolt.
Tact up effect
Vertical movement of the guide shaft enables high-speed movement of the workpiece, and to shorten tact time.

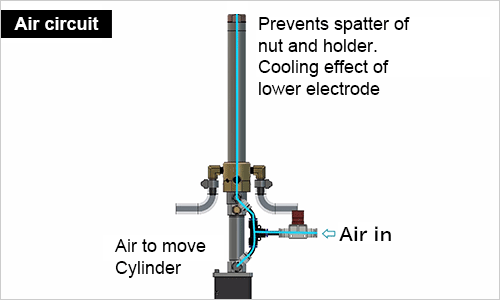

Air Blow system
Air blow system reduces spatter adhesion to bolts, guide pipes, and inside of the unit. Air cooling effect prevents heating of the electrode.

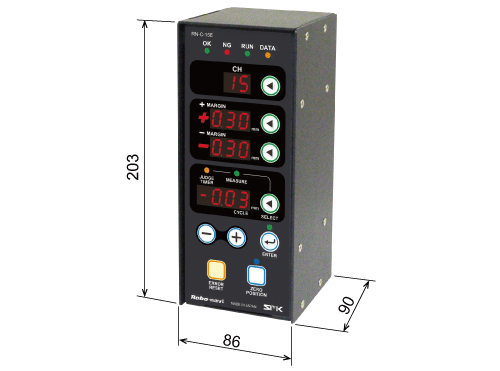

Robo-navi Controller
- 15 conditions in standard specification, and up to 31 conditions (optional) can be registered.
- OK output and NG output from this unit to external equipment is possible.
- Channel can be specified by external equipment.
- Overlapped nuts detection (optional sensor)
- Manufacturing defects prevention
Attachments

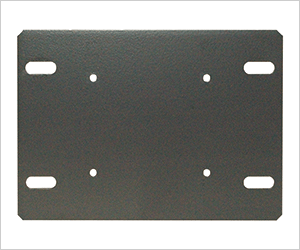

Controller mounting plate

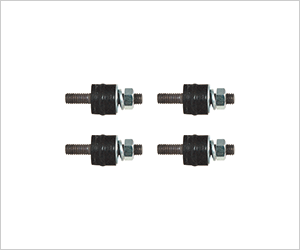

Rubber cushion
Specification
| Product name | Robo-navi-Bolt |
| Weight | Approx. 3.2kg (The size and weight are for the cases of a holder dia. 25 x 150 mm.) |
| Guide shaft drive | Air cylinder |
| Cooling method | Inner water-cooling |
| Holder outer dia.(mm) | 25/32 |
| Holder overall length(mm) | 140/190/240 |
| Attachments | Controller mounting plate: 1 pc, Rubber cushion: 4 pcs |
