BOLT POOR WELD DETECTION SYSTEM

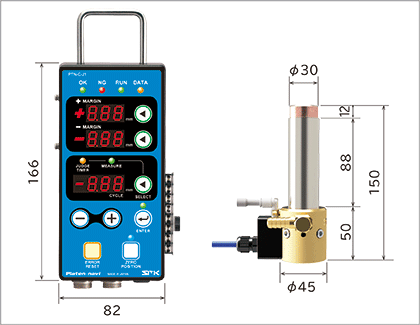

Platen-navi-Bolt

PRODUCTS | BOLT navi | Platen-navi-Bolt

Features


・Detects nut/ bolt welding defects instantly.
・Hardly breakable original sensor is installed.
・Palm-sized, attachable to any welding machine.
・Unique cooling and sputter removal structure enables stable weld quality.

Optional

Taper base
Flange base

Installation example

Horn
Taper
Projection
Special Horn
C-gun

Examples of Incorrect Bolt Setting

The difference in shape of the bolt
The difference in diameter of the bolt
The difference in length of the neck lower

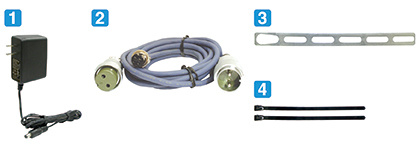

Attachments


1.AC adapter
2.Junction cable for manual operation
3.Controller mounting plate
4.Cable Tie

Feel free to contact us
