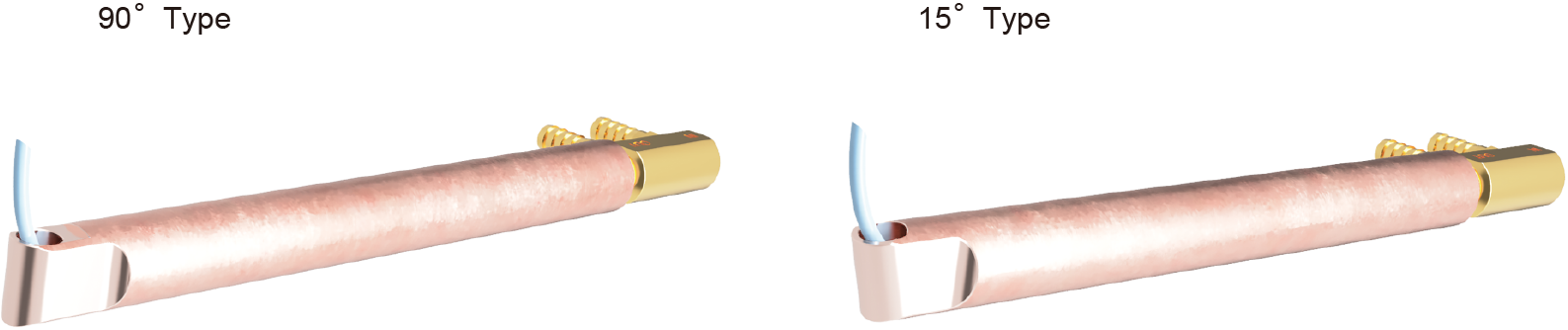

T type Tip Holder
T type Shank

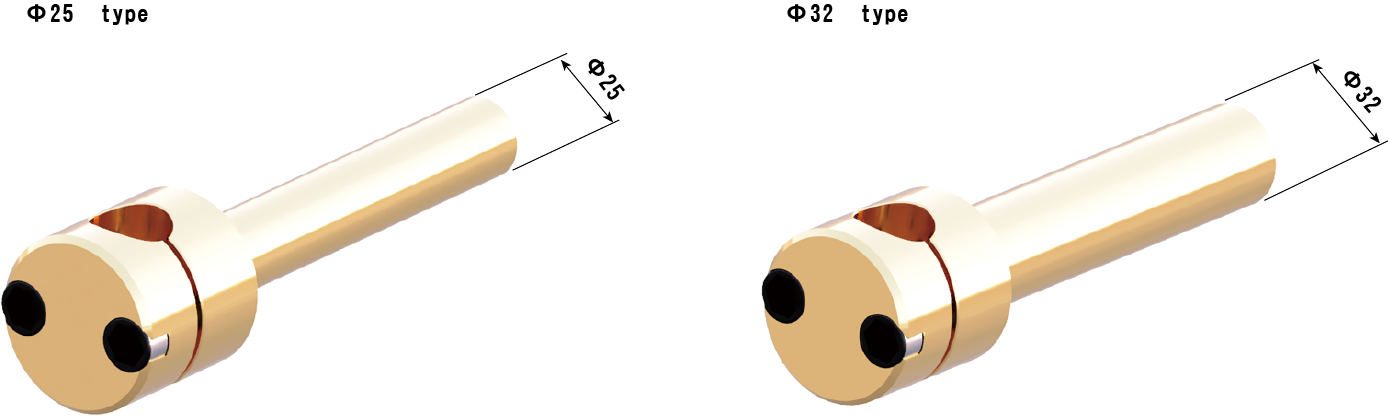

T type Holder

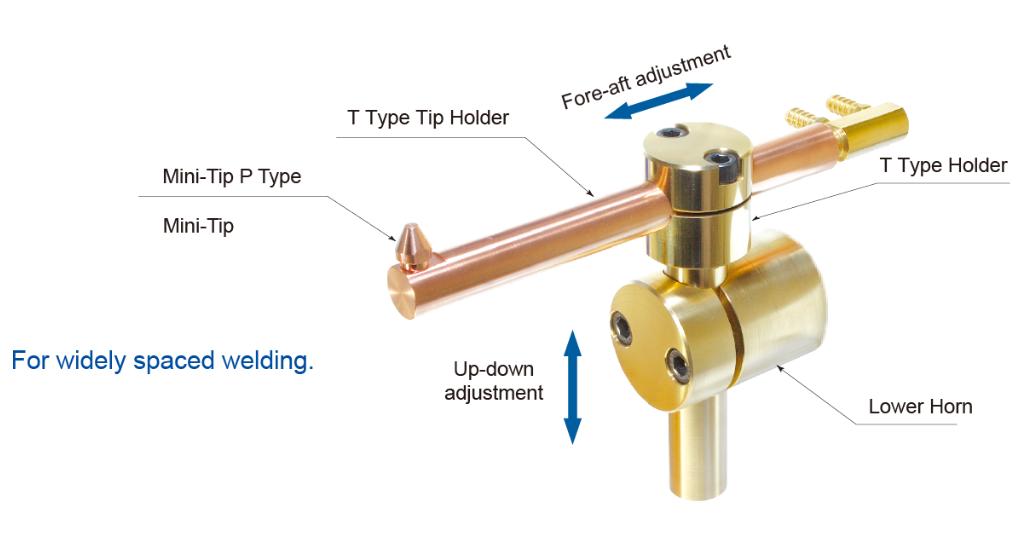

Overview

T Type Tip Holder can be used not only for normal welding but also for deep workpieces and narrow space welding.

Features

  • By only changing T type shank, you can useφ12・φ13・φ16 cap tip.
  • Reduce cost.

T type Shank

You can use Φ12・Φ13・Φ16 cap tip.
The tapered part on the holder mounting side is cutout to release the Teflon tube. The T Type Shank is made for T Type Tip Holder.

T type tip holder (Shank Specification)

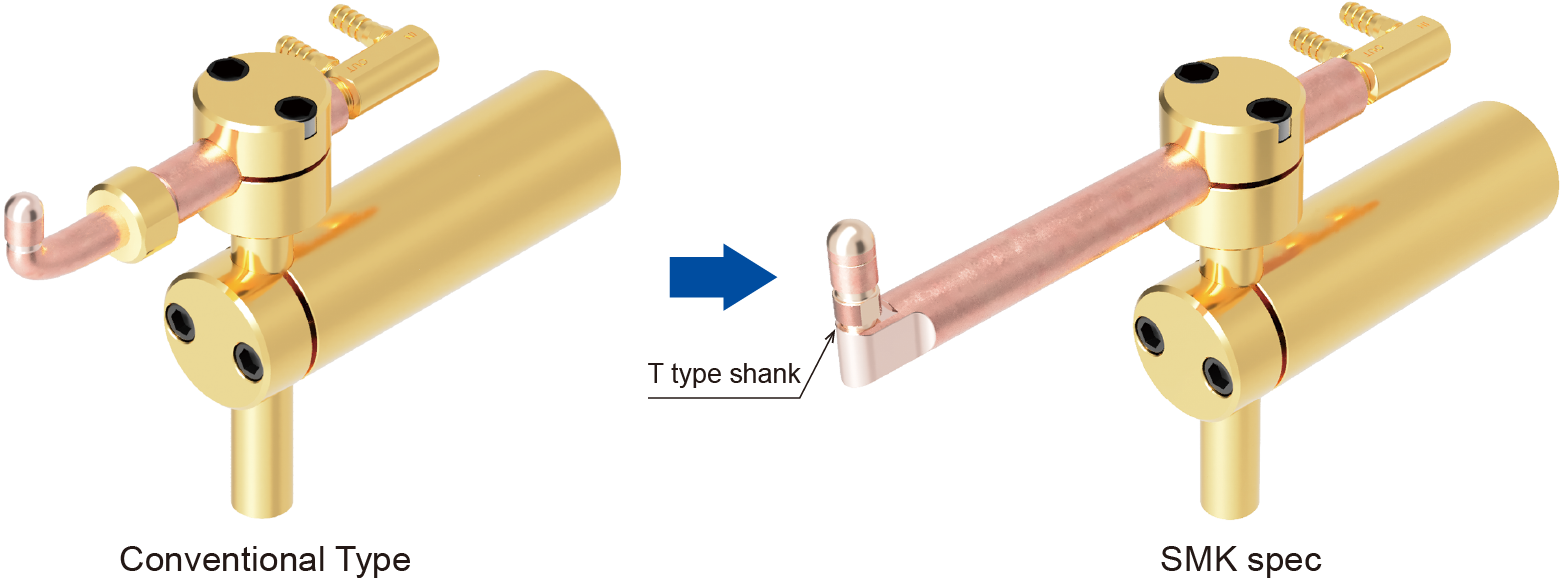

Example of change from conventional type (Bent Tip with flange) to SMK specification

By only changing T type shank, you can useφ12・φ13・φ16 cap tip.

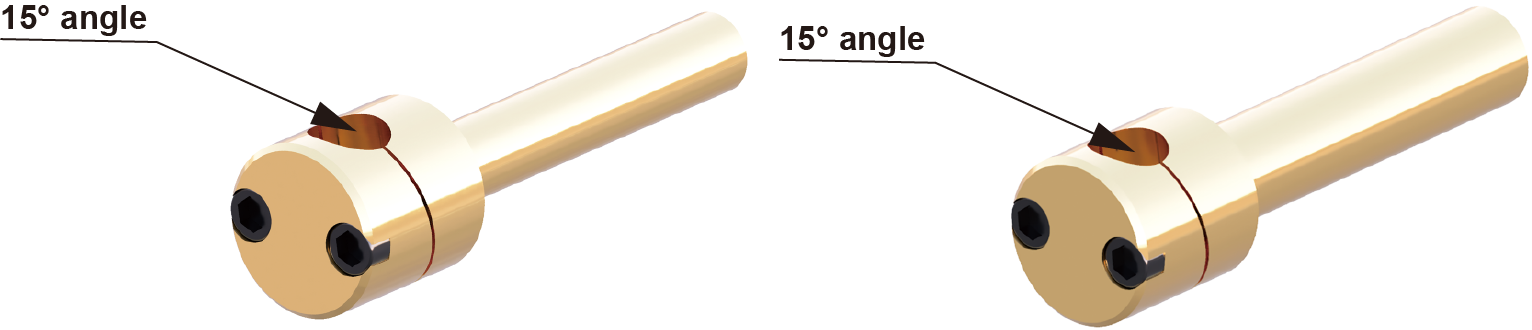

T type holder with 15° angle

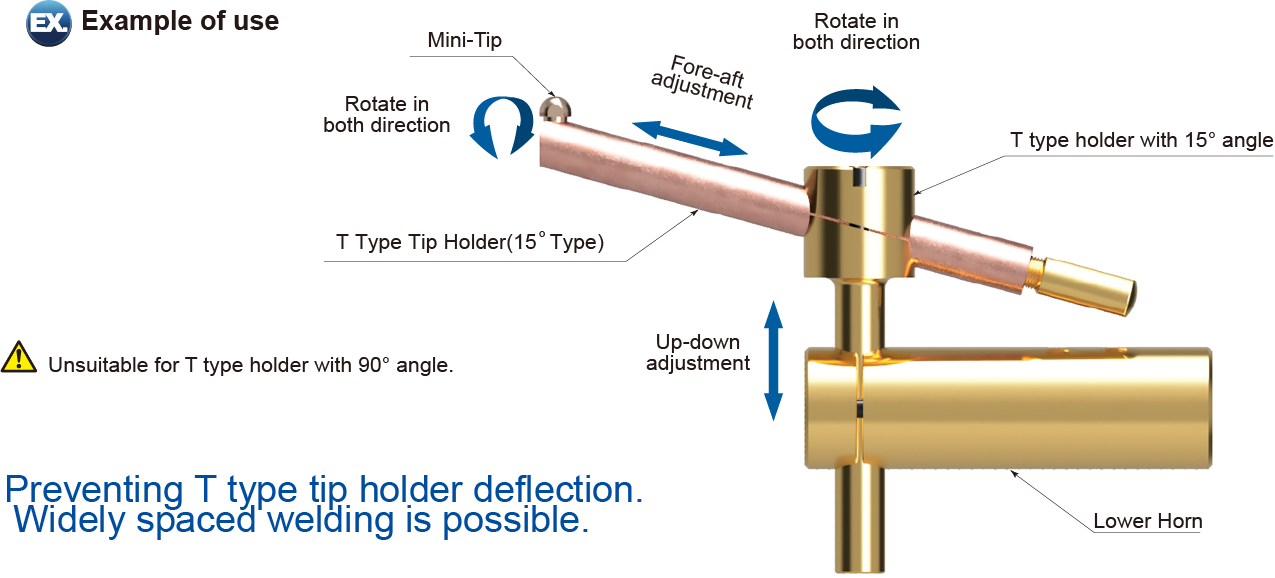

Example of use

By applying an angle 15 °, the deflection of the T Type Tip Holder is reduced.
