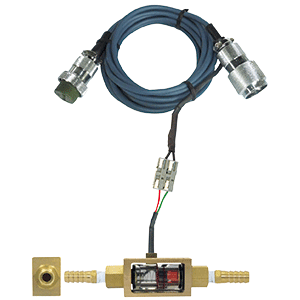

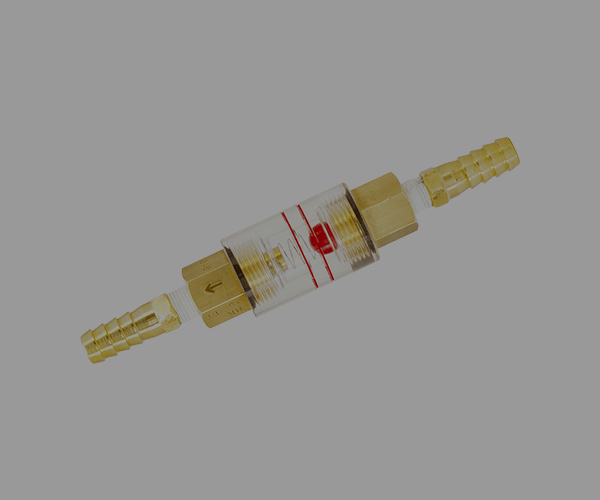

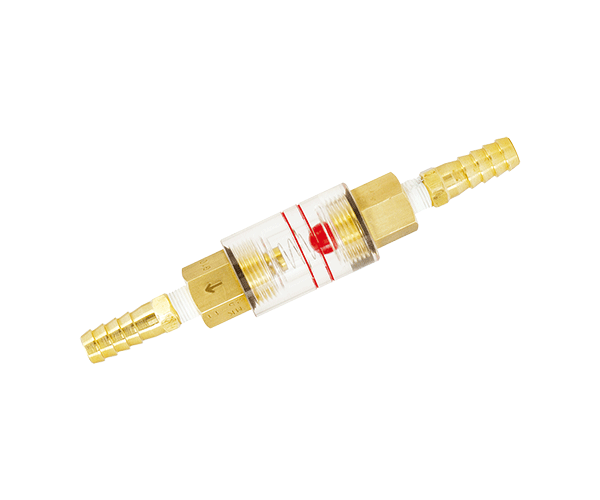

Flow Switch


Flow Switch detects whether the water is flowing or not, and if not, welding machine will not start.



■With flow control switch
By detecting fluid flow, it turns on the switch. Flow switch is "ON" when flow quantity is more than 1.0L/min and switch is "OFF" when flow quantity is less than 1.0L/min.
■Flow is clearly visible at glance
Detector for the flow of fluid in the visual motion of the float inside transparent tube.
■With protective cover
With metal protective cover, it reduce possibility of damage caused by impact from the outside.
■Mounting position is flexible
Upward, downward or sideways, mounting position is flexible as spring inside.

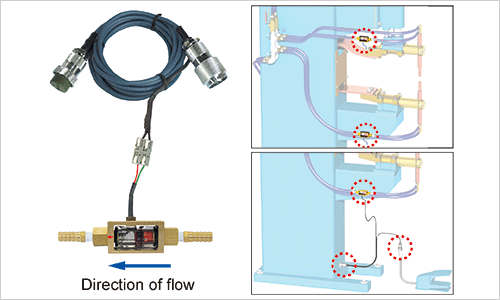

Sample of wiring

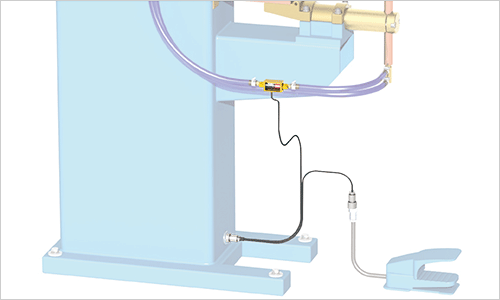

Example of spot welding

3 types of connection terminals

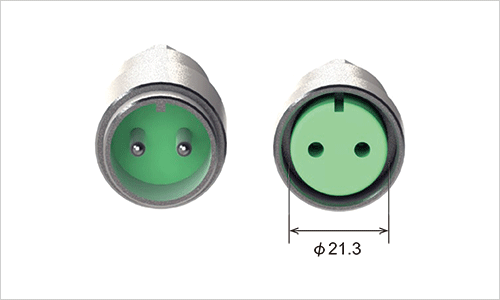

Number of metal connector pin 2P

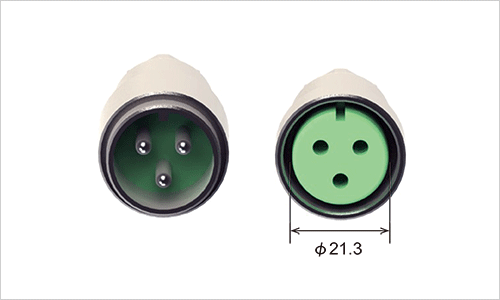

Number of metal connector pin 3P

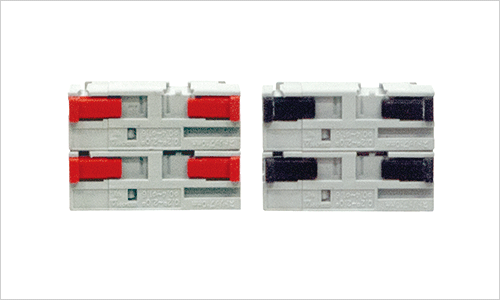

Screwless terminal

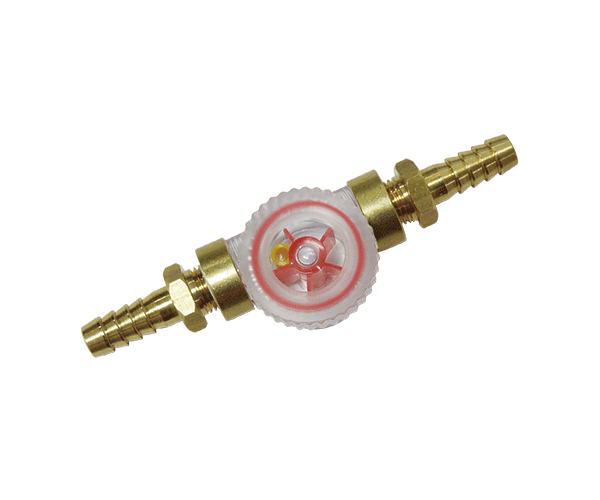

Related products
