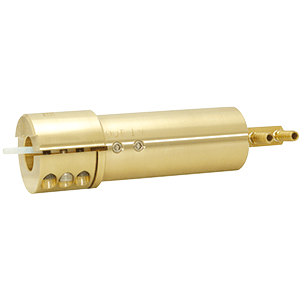

Overview
Horn Holder is designed to use with Gun Holder (sold separately).

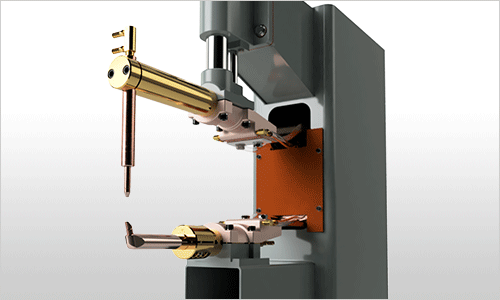

Suitable for box-shaped and long workpieces, and the edge of workpieces. Mounting the Gun Holder directly to the Horn reduces deflection of the both parts.
Features
Less deflection, stable welding quality.

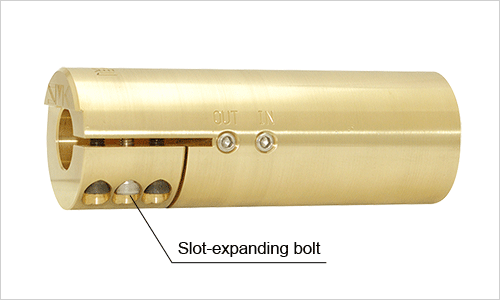

Slot-expanding bolt for easy adjustment
Gun holders are easily replaced and adjusted.
Type of Gun Holders

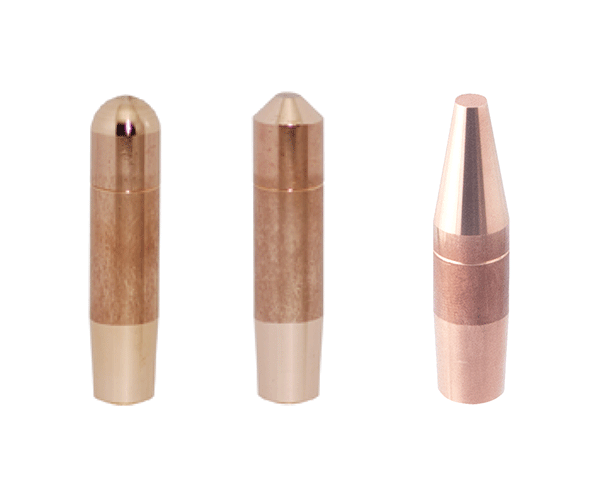

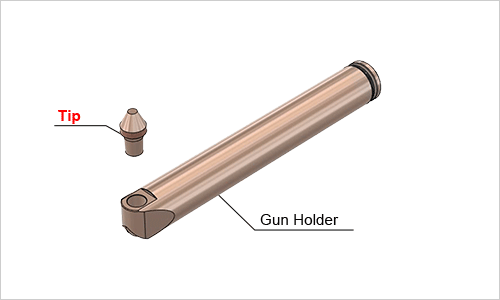

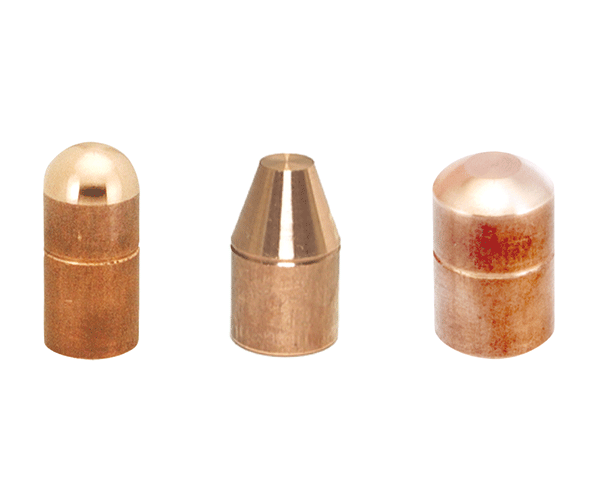

Tip specification
You can change the tip according to the purpose.

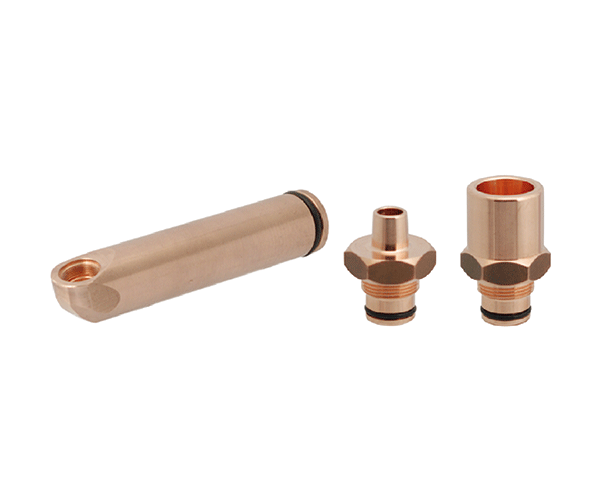

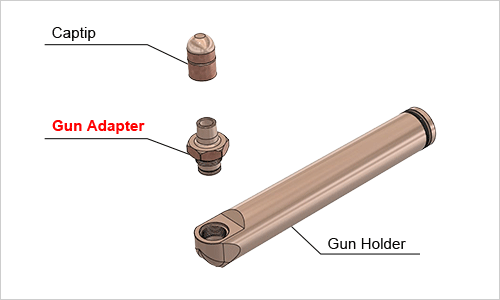

Gun adapter specification

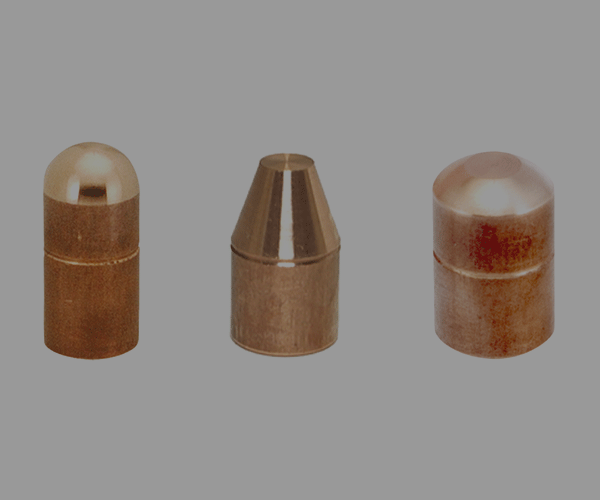

Applicable to cap tip, shank and tip by replacing the gun adapter.

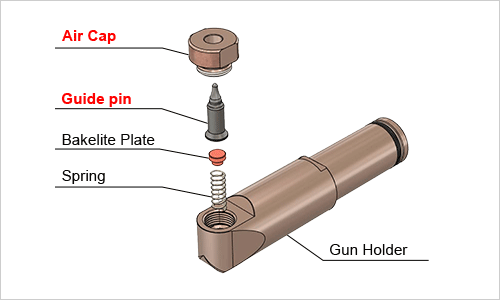

Nut specification/M4・M5・M6・M8
By replacing air cap and guide pin, you can use different size nut.

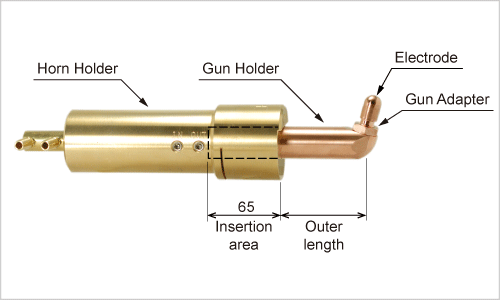

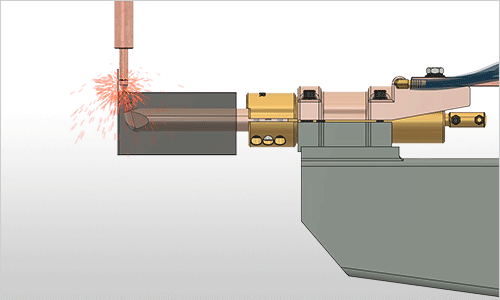

Example of use (Use on the lower holder)
This is an example of the use of Horn Holder, Gun Holder, Gun Adapter, and Cap Tip.
